Quick Details
Place of Origin: China (Mainland)
Brand Name: OCEAN WELDING
Model Number: AWS ENiFe-C1
Material: Cast Iron
Length: 200mm-500mm
Operating Current: international standard
Welding Current: 65-150
Operating Temperature: international standard
Diameter: 2.0mm 2.5mm 3.2mm 4.0mm 5.0mm
Application: Suitable for repair welding on key high strength gray cast iron .
Color: Black
Packaging & Delivery
| Packaging Details: | 5kgs per plastic box,20kgs per carton box. |
| Delivery Detail: | within 20days after receiving your order. |
Specifications
1.Dia(mm): 2.5, 3.2, 4.0
2.Electric arc stability, ac/dc amphibious
3.Factory delivery, competitive price, high quality

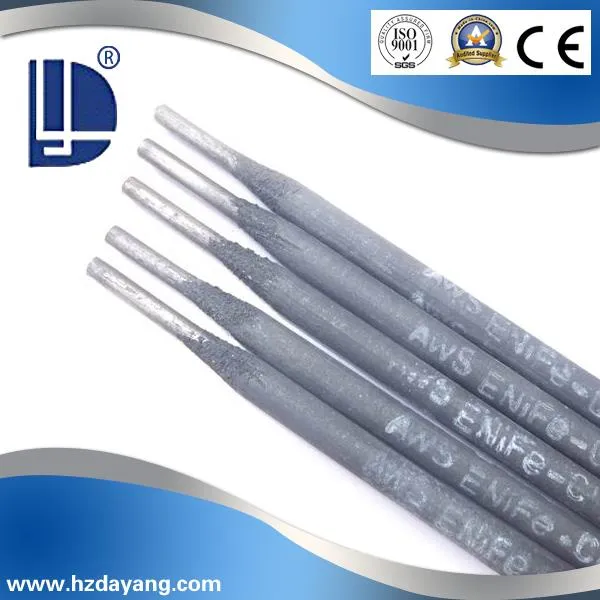

AWS A5.15 CAST IRON WELDING ELECTRODE ENiFe-C1
Standard:
GB EZNiFe-1 AWS ENiFe-C1 Z408
Description:
ENiFe-C1 is a kind of cast iron electrode with Ni-Fe alloy core wire and strong reducibility graphite type coating. It has some characteristics like high strength, good plasticity, low coefficient of linear expansion, etc. The crack-resistance for gray cast iron is similar with that of ENi-C1, but the crack-resistance for spheroidal graphite cast iron is higher than that of ENi-C1. It is also effective for cast iron with high phosphorus content (0.2%P).
Application
Used for welding gray cast iron and spheroidal graphite cast iron under normal temperature or preheated a little (to about 200℃). AC/DC.Suitable for repair welding on key high strength gray cast iron and spheroidal graphite cast iron, such as cylinders, engine bearers, gears, rollers, etc.Product Technical DATA:
(A) Chemical Composition of Deposited Metal(%)
| Chemical Composition | C | Mn | Si | S | Ni | Fe | V |
| Guarantee Value | ≤2.0 | ≤1.8 | ≤2.5 | ≤0.03 | 45~60 | Balance | ≤0.1 |
(B) Reference Current(AC,DC+)
| Electrode Diameter(mm) | φ3.2 | φ4.0 | φ5.0 |
| Welding Current (A) | 50~100 | 70~120 | 110~180 |
AWS A5.15 Packaging&Shipping
1. AWS ENiFe-C1 Cast iron welding electrodes
2. Wire Diameter Dia :2.0mm-5.0mm
3. Packaging detail:5kgs per plastic box, 4pcs of 5kgs box into 20kgs per carton box.
4. Delivery time:Within 25days after receiving your order.
